Series C

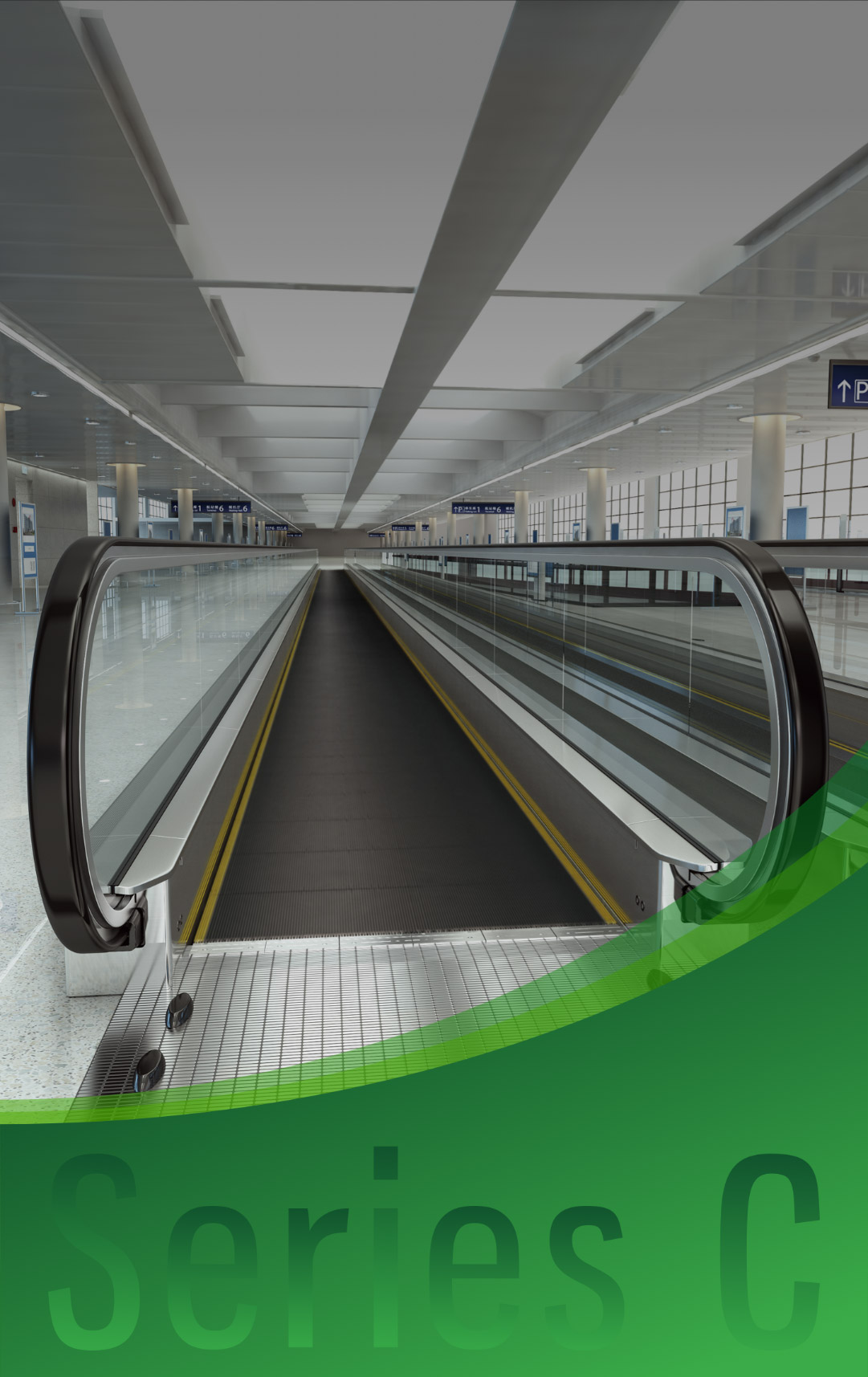

Moving Walk
Calm and Peaceful Exquisite and Affluent
Relaxing space in busy city life
Moving walk
Moving walk

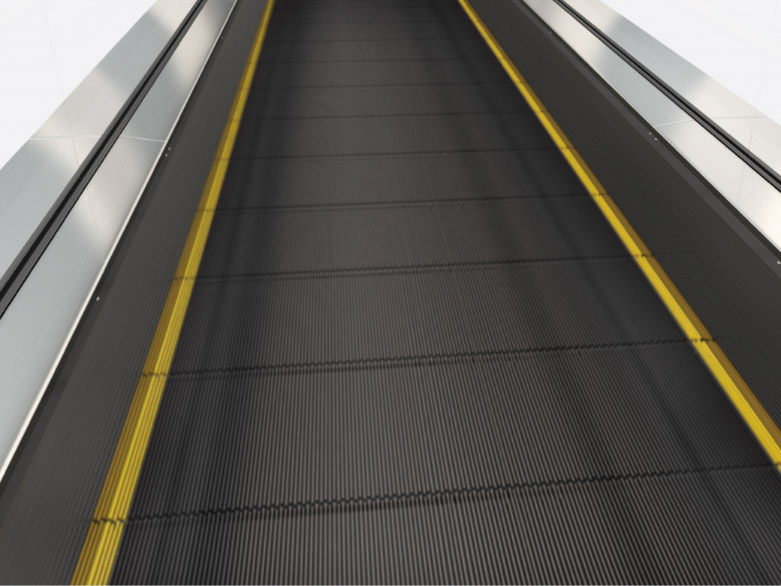

C series auto walk adopts the cutting-edge techniques with swift、comfortable、safety performance. Not only satisfies the increasing traffic needs in the modern metropolis, it also constitutes a colorful and fluid view in the city. Riding on C series auto walk from SMEC, passenger would feel like in a quiet time tunnel, relaxing in the busy work and stepping forward, making the travel、shopping、sightseeing a real easy thing.
Energy saving comfort
Highly Efficient Comfortable and Reliable
Longer Component Lifespan

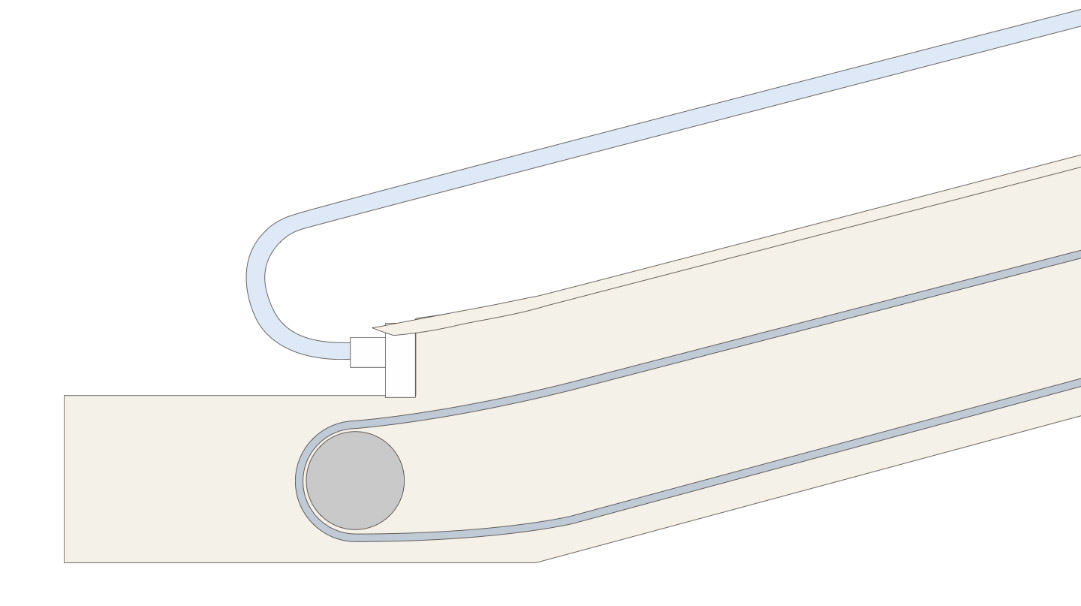

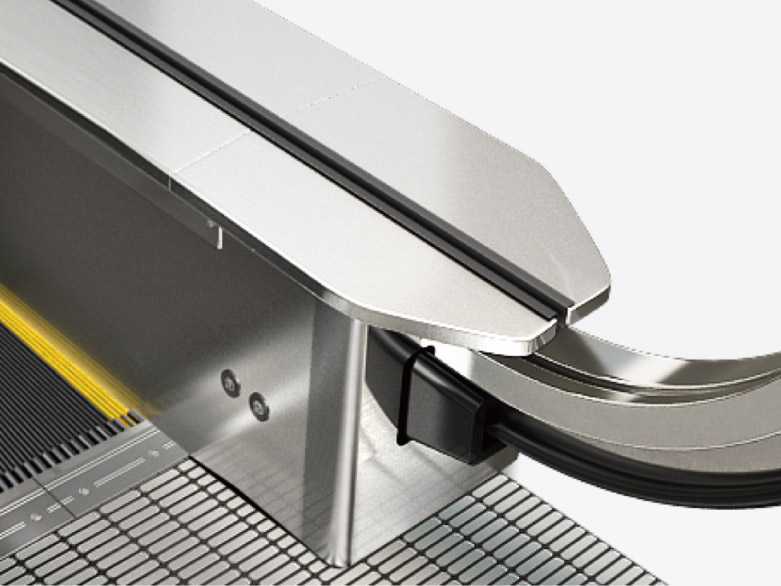

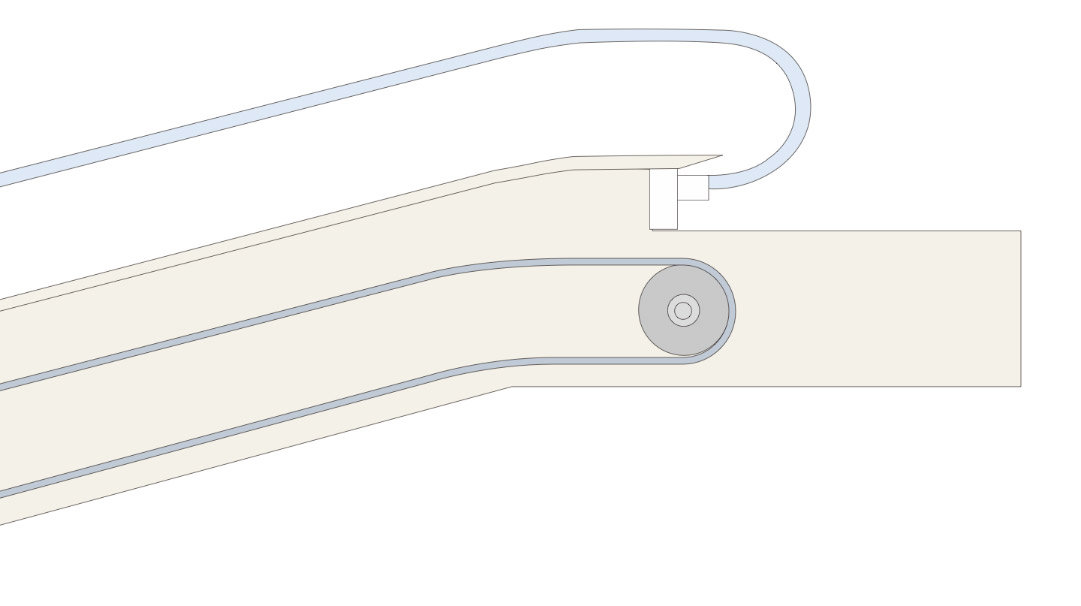

The linear handrail drive significantly increase the lifespan of handrail; The unloading guides at the cured track of moving walk enable the rollers not to touch with the guide rail at upper curved part, reduces the wheel load and abrasion of the rollers, and prolongs the lifespan of the rollers; Using the automatic oil feeding device as the standard configuration significantly increase the lifespan of various chains; The standard interior-decorating components are made of stainless steel and are able to stand wear and fear.
Simple and Convenient Maintenance
The driving device of vertical layout has larger maintenance space than the driving device of horizontal layout, making the operation more convenient; Automatic oil feeding device is adopted as the standard configuration. The moving walk uses a large number of chains, such as pallet chains, drive chains, handrail chains. The lubrication of these chains is essential for ensuring their lifespan and guaranteeing the performance and quality of the moving walk.
Energy Saving
C series auto walk adopts highly efficient helical gear reducer and new handrail drive for energy saving; Frequency-variable auto walk can adjust operation speed according to passenger flow automatically. It would enter low-speed or standby mode in case of no passenger to save energy consumption. Adopt the motor in accord with GB18613-2012 and EU Command 2005/32/EC, achieving International Energy Efficiency Grade IE3, which has smaller size and high efficiency up to 91% (take 11kW as example)
Comfortable
An advanced drive unit and reliable safety devices are installed in the series C moving walk, and moreover, a series of damping and anti-noise structures are used to make passengers feel comfortable, smooth and quiet during riding operation.
Large Transport Capacity
Series C moving walk has a large transport capacity. It can meet the requirements for modern passengers traffic of different aspects and they are suitable to many places such as airport, shopping center, hotel and recreational facilities, etc... The space requirement for our unique creative design of moving walk has been reduced to the minimum. The sturdy structure can assure a large sufficient capacity. Every inch of valuable space shall be saved and the requirements of modern city traffic shall be taken into full account while carrying the busy stream of people in large markets or airports. The inclination angle of 0-12 degrees is available to option in accordance with different usage and environment.
Experience the ultimate
Advanced TechnologySupreme Experience
Bypass variable frequency technology——Energy-saving
When the escalator operates with the nominal speed, cut out the frequency converter automatically and shift to the power grid which could increase the lifespan of the converter significantly. In case of any unrecoverable error with the converter, switch to the power frequency grid manually, and the operations of the escalator will not be blocked. In case of no load, the escalator will automatically switch to low velocity standby or stop standby. Regenerative power from descending would be fed into the grid, which is energy saving and environment friendly.
Phase-locked switching technology——Comfortable
Special frequency converter independently developed by Mitsubishi has the feature of modularized design and compact size; Advanced "Active Phase Synchronization, Phase Lock Switch Technique", realize smooth change between variable frequency to work frequency.
Functional safety technology——Safety
Pass the safety verification held by National Special Equipment Authority, and it is listed as the first in the nation passing certification of escalator function safety component PESSRAE held by European authorized German TüV Rheinland; Adopt double channel redundant inspection to ensure the safety function is reliable and effective.

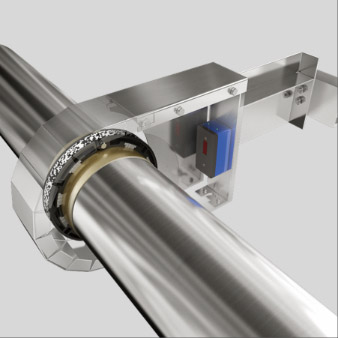

Inspection System of Main SpindleAbsolute Position
Read code value of absolute position code disk installed on main spindle by absolute position sensor, thus the absolute position of escalator main spindle can be precisely acquired (precision up to 0.5mm), and calculate current operation speed and direction.
Play

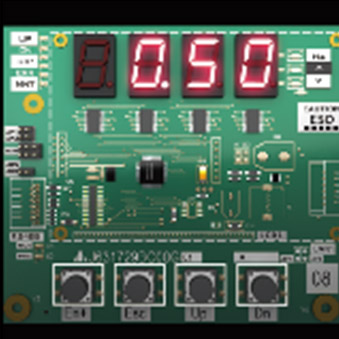

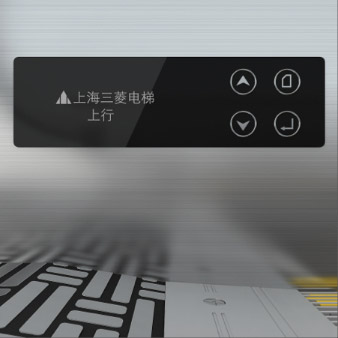

Multi-function operation panel ( Option )
Provide operation panel with VFD ( Void Fluorescent Displayinternal deck , achieving error check , function start and closeIt still has good display even in the case of large temperaturevariety , direct sunlight .
Control Panel LED Operation Faceplate
Configure parameter , check operation states and eror codesvia operation faceplate installed in control panel . Use LED tube forindication

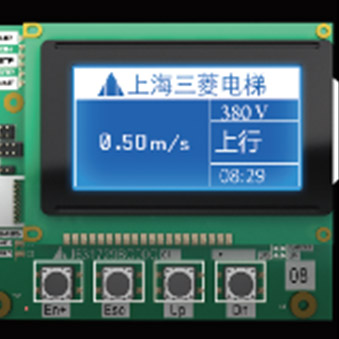

Control panel LCD operation panel( Option )
Configure parameter. check operation states and error codesoperation faceplate installed in control panel. Use LCD screenindication
TREND
Fashion and Style
legant and Exquisite Design and Decoration
As a kind of modern means of transportation which incarnates the elegantappearance of city . most of moving walk are installed in the thriving placesof town . Series C moving walk designed according to high criterion have awide range of optional decorations which can add luster to the city life indifferent places

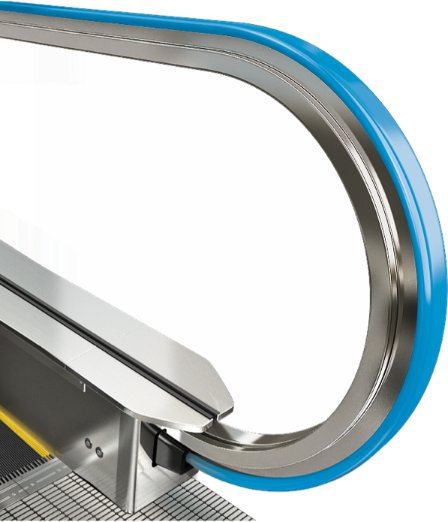

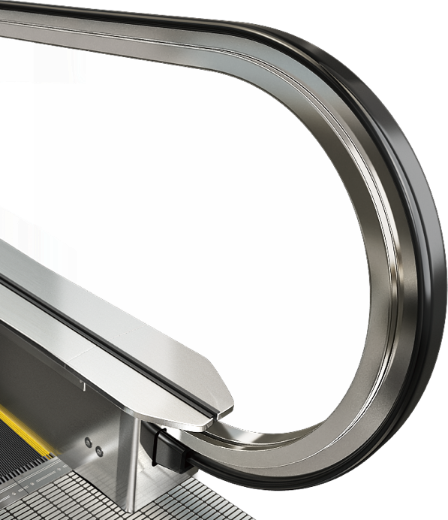

Handrail color
Black (standard)
Black gray (optional)
Gray (optional)
Red (optional)
Blue (optional)
Safe and reliable
Safety EquipmentIndividuation Configuration
Customizing personalized decoration scheme for you

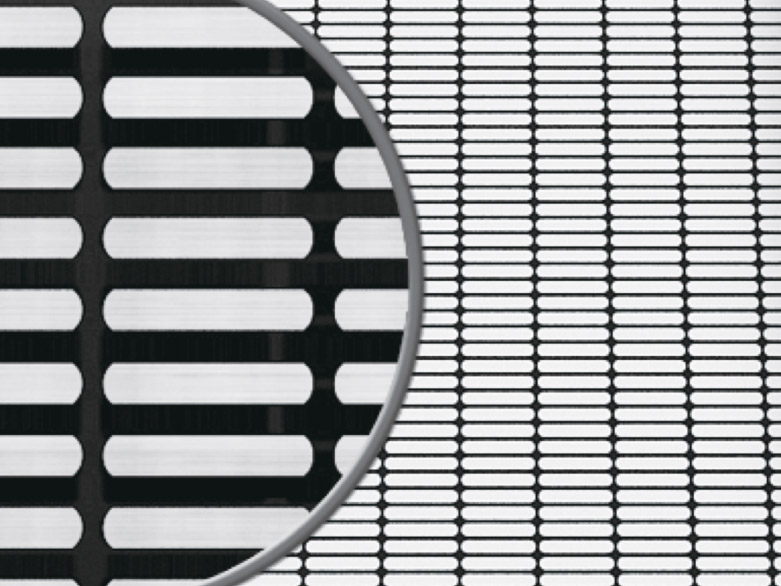

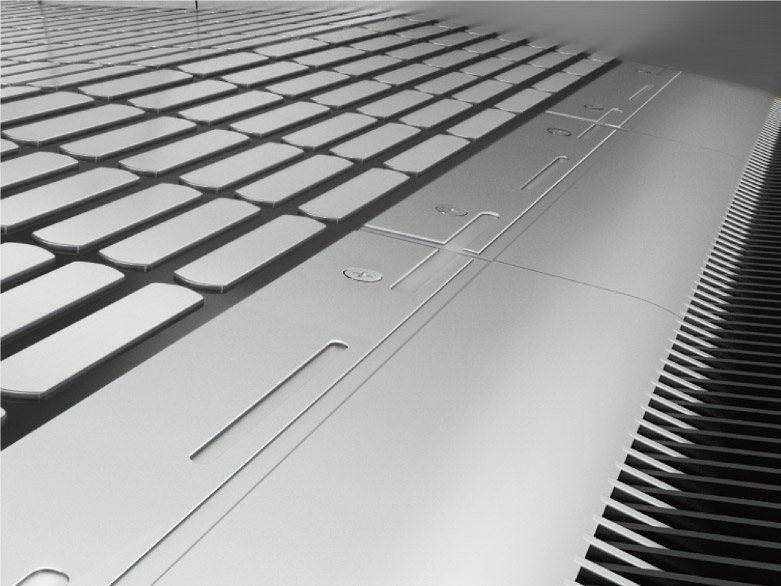

Front Plate Stainless steel with anti-skid groovesand block coating inside
Safe and reliable
Safe and reliable
Handrail belt speed detection (HSS)
When the handrail speed is lower than 15% ofthe pallet speed and maintains for over 15seconds . this device wi immediately cut off thepower supply of the drive motor and the brake
Missing pedal protection (PMS)
When there is any pallet mising. the device takesachon to stop the moving walk
Comb plate safety device (CSS)
When any foreign object folls between the palletsand the comb plate , stop the moving walk
Emergency stop button (E-STOP)
In emergency . use this device to stop the moving walk
Handrail entrance safety device (HGS)
When any foreign object gets pinched into thehandrail inlet . stop the moving wak
Non-manipulation reversal protection (ARP)
In case of moving walk reversion of the escalator . thedevice wil cut down the power supply to the mondrive motor and the brake
Drive chain safety device (DCS)
When the drive chain breaks or extendsabnormaly . stop the moving walk
Cover plate safety device (DOS)
When the maintenance cover plate is taken out , stop themoving walk or prevent it from starting
Pedal chain safety device (PCS)
If the pallet chain is broken or abnormallyextended . this device will cut off the power supplyof the drive motor and the brake
Cover plate safety device (DOS)
When the maintenance cover plate is taken out .stop the moving walk or prevent it from starting
Handrail entrance safety device (HGS)
When any foreign object gets pinched into thehandrail inlet , stop the moving walk
Emergency stop button (E-STOP)
In emergency . use this device to stop the moving walk
Comb plate safety device (CSS)
When any foreign object falls between the palletsand the comb plate , stop the moving walk
Missing pedal protection (PMS)
When there is any pallet missing . the device takesaction to stop the moving walk .
Sagging pedal safety device(PRS)
If the pallet sinks and the step cannot mesh withthe comb plate , stop the moving walk
