Super cost performance ratio and product competitiveness
A number of industry-leading new technologies have been adopted to comprehensively optimize the system. The configuration is fully upgraded.
Cutting-edge Technologies All in OneCarefully select and customize

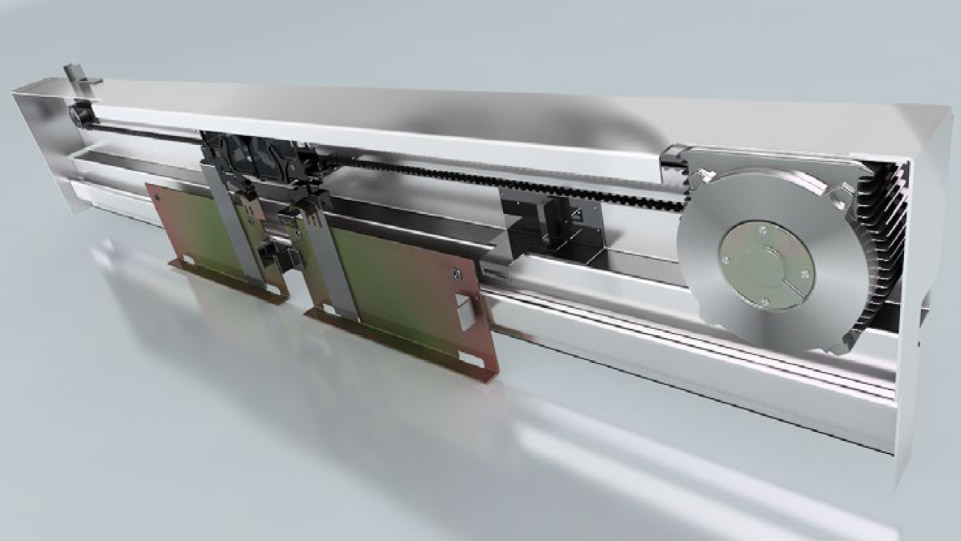

Intelligent, ultra-thin, silent PM door motor system

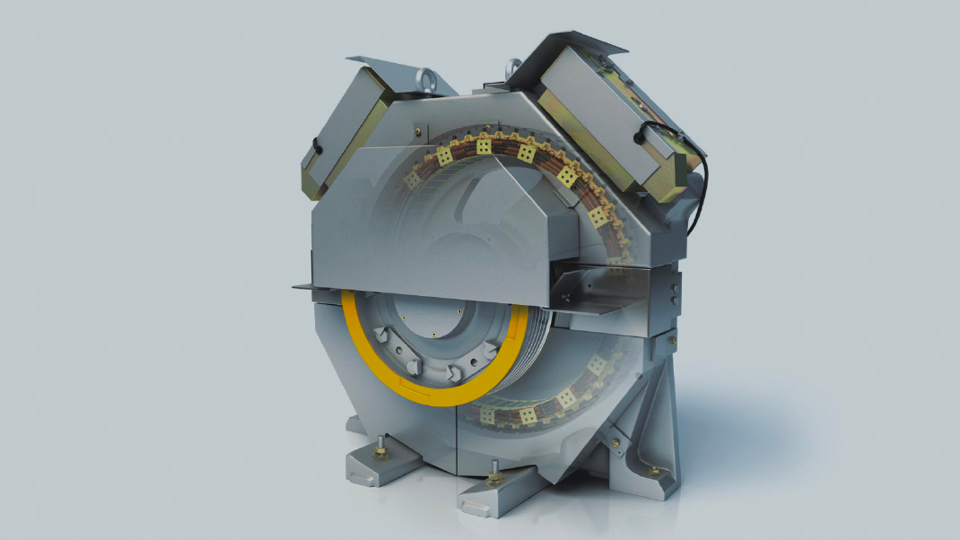

New generation PM traction machine
DigTel-III elevator data Transmission system

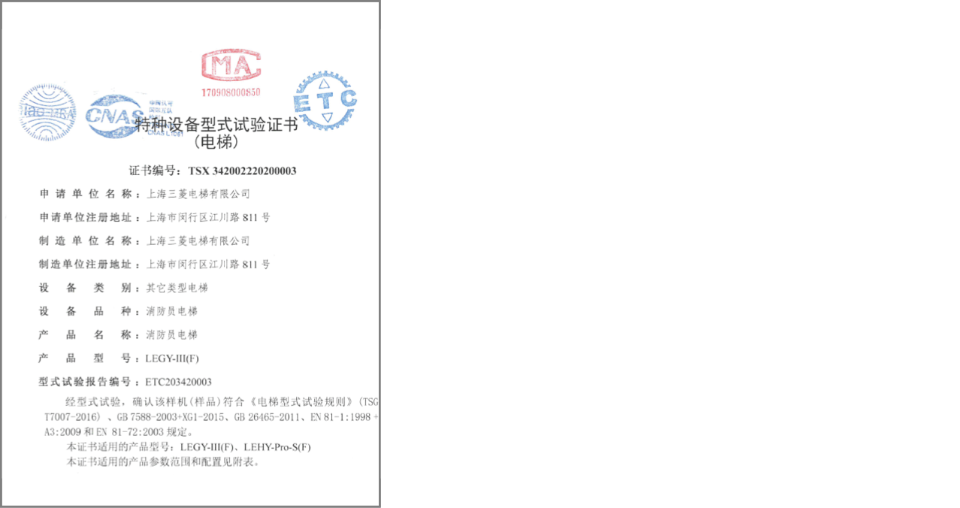

LEGY-III (F) can meet the standard of fireman elevator

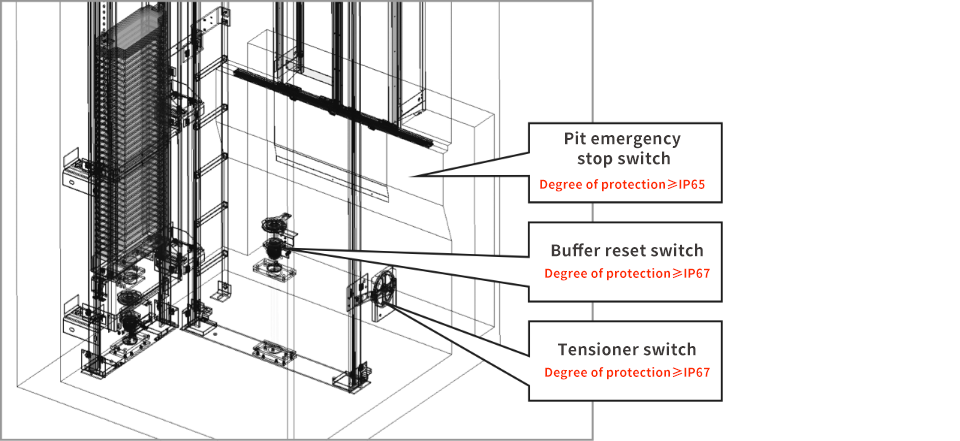

IP level has been comprehensively improved

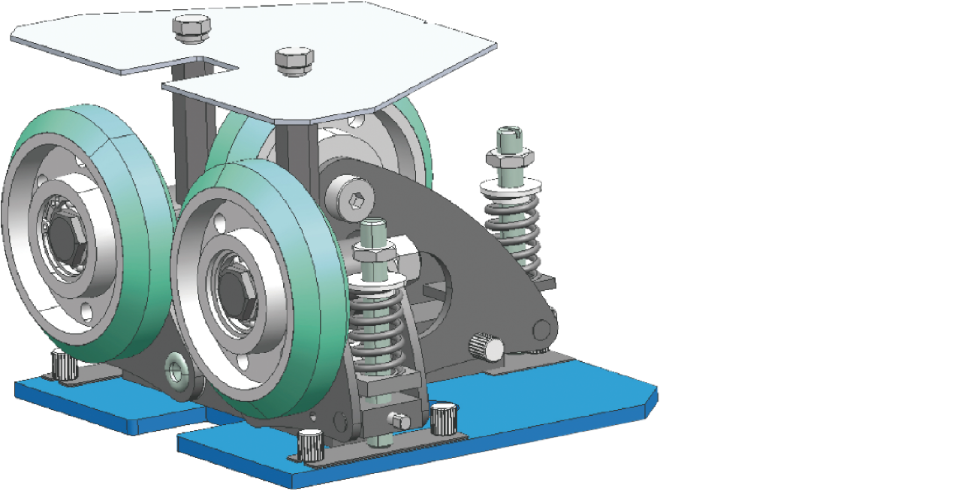

Optional roller guide shoe

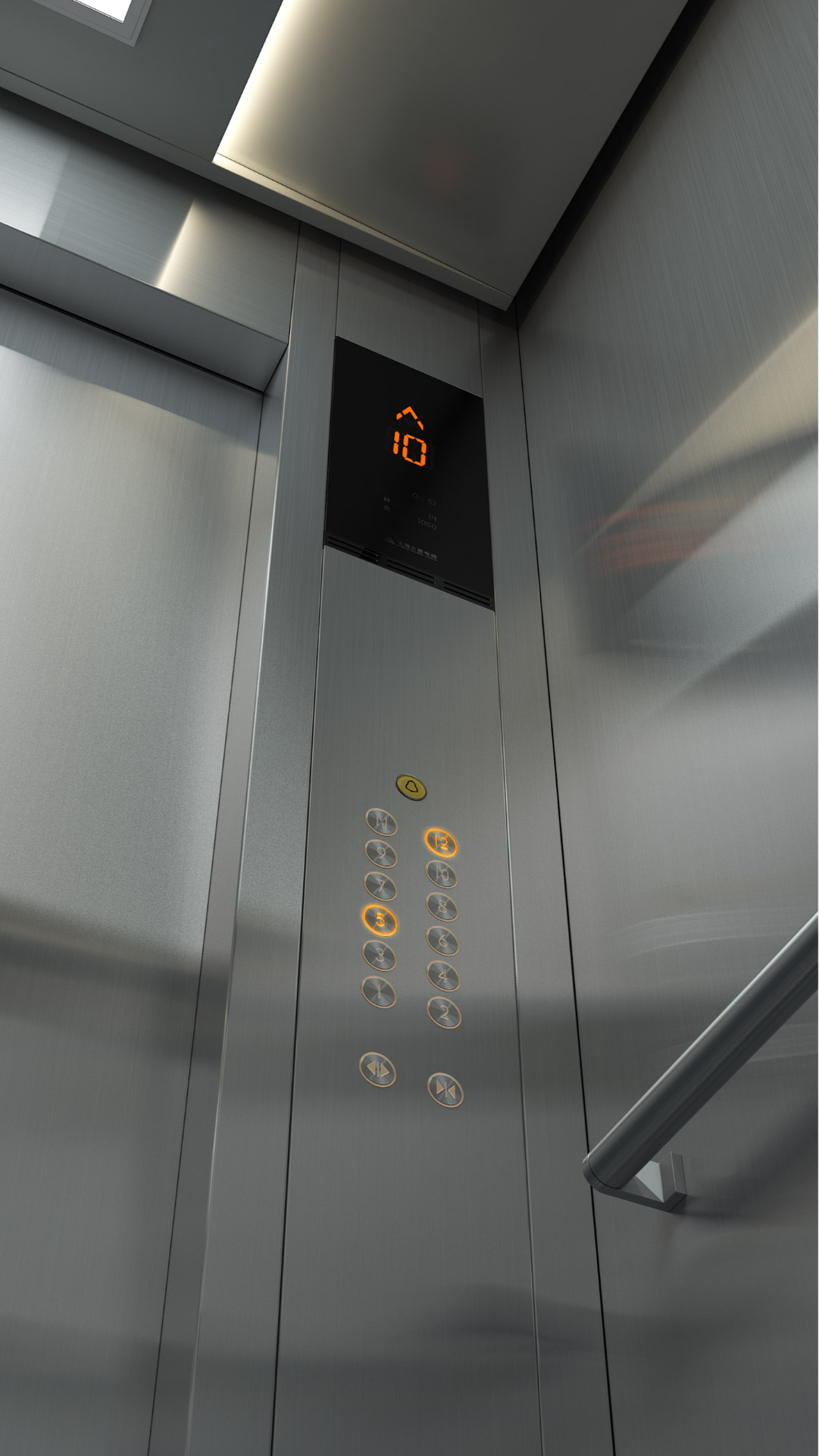

Full height control box, elegant and atmosphericThe panel width is 220mm, the front wall/car wall is flush, with strong overall feeling and more atmospheric appearance

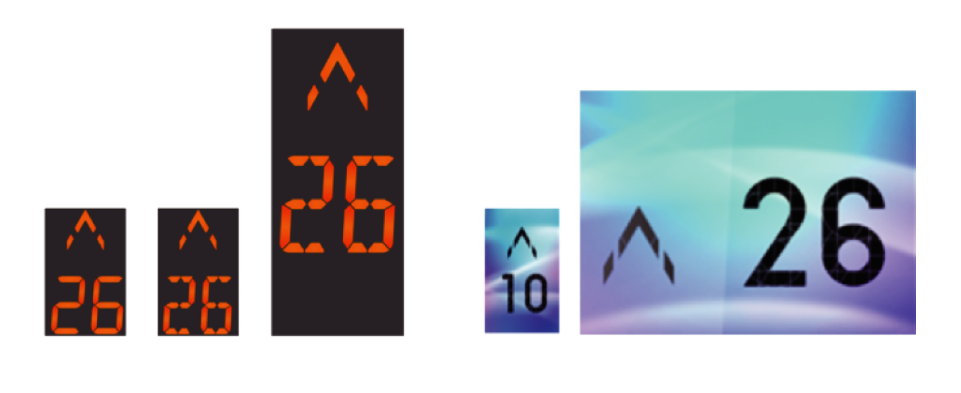

Segment code display+bit segment LCDThe appearance is upgraded. LEGY-III has designed a new segment code display, a new segment LCD interface, which is exquisite and gorgeous. The graphical display is more intuitive and humanized, effectively improving the product's sense of quality and value.
Independent display of running direction, continuous font
Bits display characteristic fonts, and the background is exquisite and gorgeous
The arrow font design with the characteristics of Shanghai Mitsubishi is simple and beautiful
The display window has a larger size and a more impressive appearance
PIM (Power Integration Module)
Select the latest 7th generation PM module
Module selection shall be carried out in strict accordance with the design basis of SMEC
All 19 functions are tested on the one touch debugging console
Every time the elevator is powered on or every 24 hours, if the elevator is idle, carry out an intelligent self-test of balance coefficient and braking torque
If the balance coefficient exceeds the range but is within the threshold value, a prompt will be given; if it exceeds the threshold value, a warning will be given to stop the elevator; If the braking torque is less than the threshold value, the elevator will be stopped for warning
Miniaturized control cabinetThe frequency converter based on PM module, the main circuit components realize on-board, and the control cabinet is miniaturized through highly integrated design

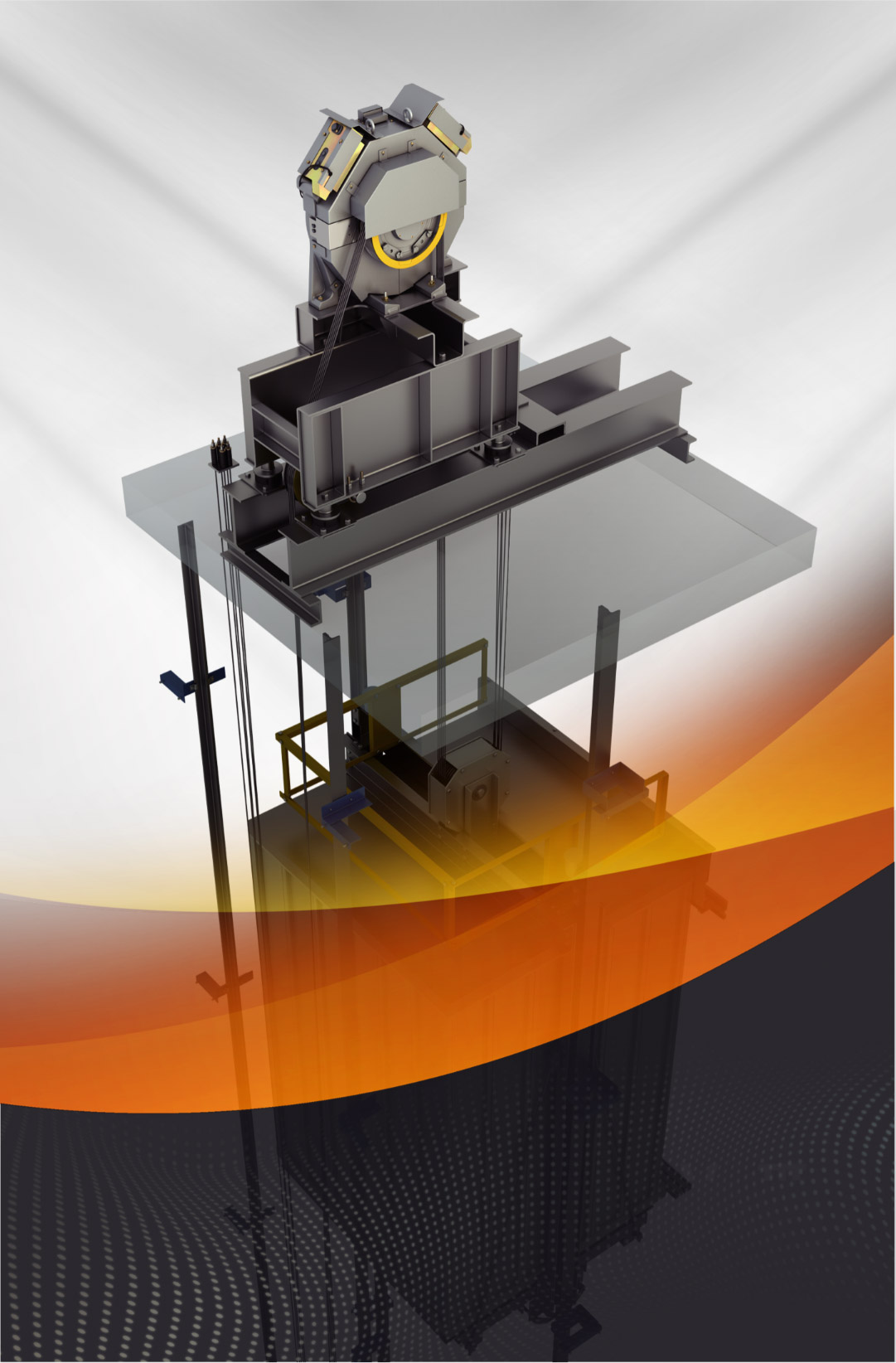

Real small machine room designThe size of the machine room is the same as that of the shaft, which greatly reduces the building area, improves the utilization rate of the building, and saves the construction cost.
New development direction of intelligent elevator in the future
Traditional lane: first bus (control signal)High speed lane: intelligent second bus (intelligent data)Articulated stator core technologyPatented technology of SMEC Electric

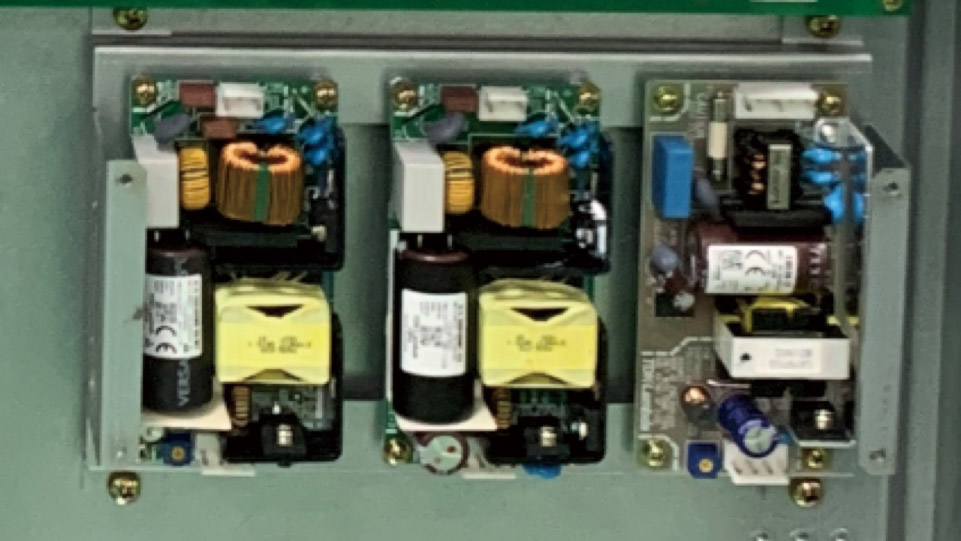

Digital power systemThe power supply system using full switching power supply instead of traditional transformer power supply not only significantly reduces the system energy consumption, but also has the characteristics of small size, high security, high reliability and strong anti-interference ability
Shanghai Mitsubishi LEGY-III full digital power supply system
Lower energy consumption: efficiency is 20% higher than transformer
Small output voltage fluctuation: not affected by grid voltage fluctuation
Self protection function: over-current, over-voltage protection, etc
Safety and quality assuranceDesign basis of high safety level
The new generation of standard ladder type LEGY-III and other ladder types of SMEC implement the same design basis
Brake：15million times；Car door lock：15million times
Door lock of landing door：3million times
Terminal switch：15million times……
Self production rate is at the top of the industry: adhere to self production and ensure quality
Components related to the safety of users: safety gear, speed limiter, buffer and other core components related to the reliability and performance of the elevator: control panel, frequency converter, traction machine, etc.
Components involving aesthetic and visual appearance: operation box, landing call, etc

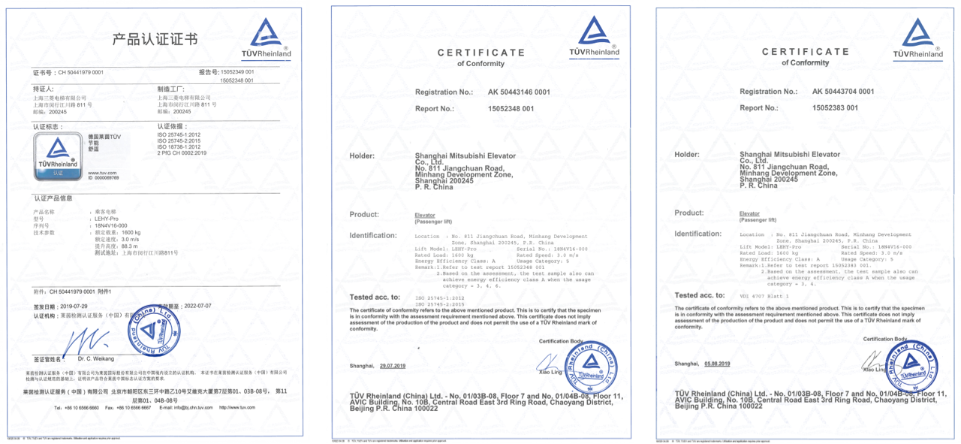

Certificate of comfortRhine TÜV Comfort certificateGoodgradeRhine TÜV Double energy saving certificate
VDI 4707 highest gradeA
